FIBC Bags

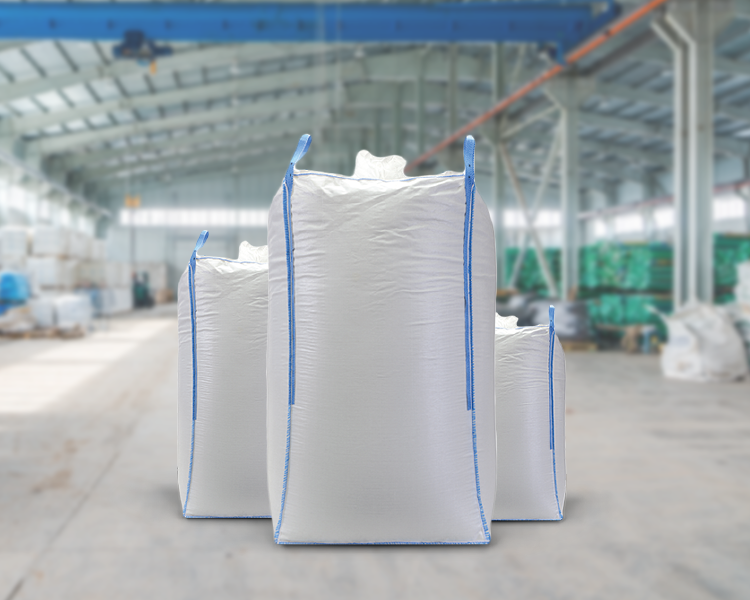

Type A – Regular FIBC Bags
These are the standard FIBC used by industry who are filling and discharging products with no static problems
SAFE USE
Used to transport and storage of non flammable products
No flammable or gas present around the bags
DO NOT USE
To transport flammable products
When flammable or gas present around the bag
Type B – Anti static Bags
These are manufactured from regular PP fabric by adopting special technique to keep the fabric break down voltage less than 6 kv as per standard IEC 61340 4 – 4
SAFE USE
To transport dry flammable powders
No flammable or gas present around the bag
DO NOT USE
When flammable or gas present around the bag
Type C – Conductive Bags
Jumbo Type C Conductive bags are made from fine conductive threads produced in house by using most modern technology to achieve best conductive properties. The conductive threads are woven in to the fabric by using special looms with extra attachment during weaving process. During production on-line checks ensure all the properties are kept under control such as tensile, elongation, insulation values etc. The conductive fabric is cut in to different measurement and the bags are made by using interconnected conductive. Threads along with earth tab, with a leakage resistance from any point of the conductive fabric structure to the grounding point of less than 108 ohms.
Type D – Electrically Disipitative Bag
Every bag is made with utmost care, by well trained manpower to attend the perfect Dissipative properties and these bags are frequently tested as per standard IEC / ISO 61340- 4 -by reputed Laboratories to ensure, utmost safety during usage. Our bag is made with special IDP Coating. The coating is permanent and humidity independent. This coating helps to… Reduce tribocharging during filling and discharging, because of material capability to neutralize charge separation Prevent spark discharges, propogating brush discharges because of the material capability to alternate discharge phenomenon Reduce electrostatic field from the fabric surface, because of charge neutralization by ions. Our solution is not based on conductive threads with carona discharging. Our sample bag passed the Chilworth Test for Incendivity (Gas Probe Test), according to IEC 61340-4-4.
SAFE USE
To transport flammable powders
When flammable or gas present around the bag
DO NOT USE
When the surface is contaminated or coated with conductive material such as water or grease
